Single use abdominal trocar is mainly used to insert abdominal wall, establish a channel between abdominal cavity and outside, and get the surgical device into abdominal cavity through trocar sleeve to do the operation and achieve same effects as open surgery. Abdominal trocar is for single use only, sterilized by radiation when products leave the factory.

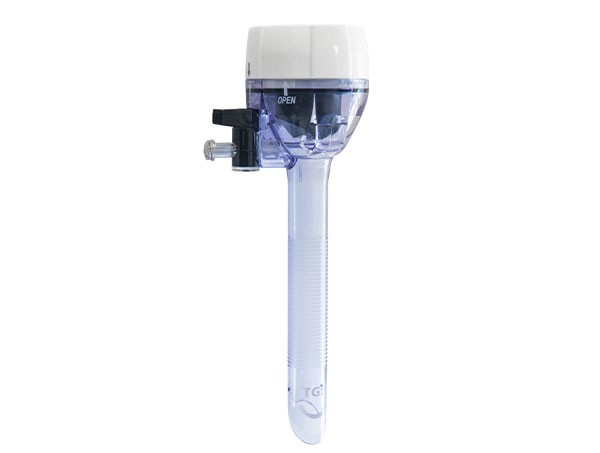

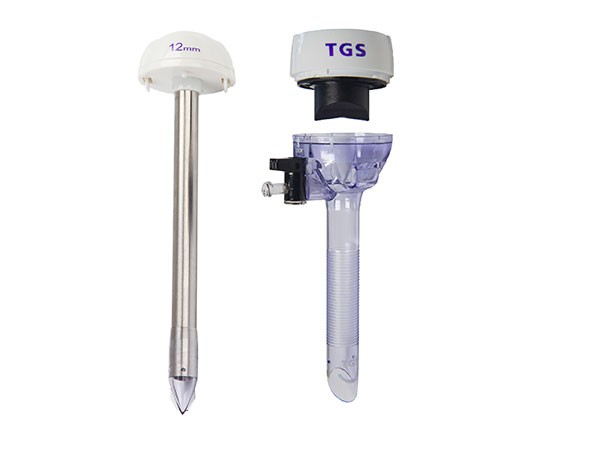

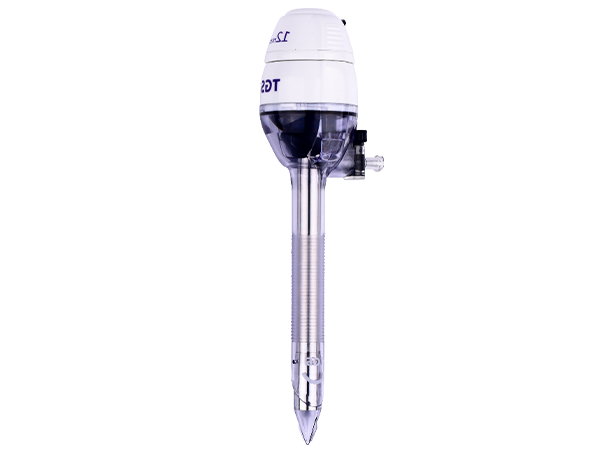

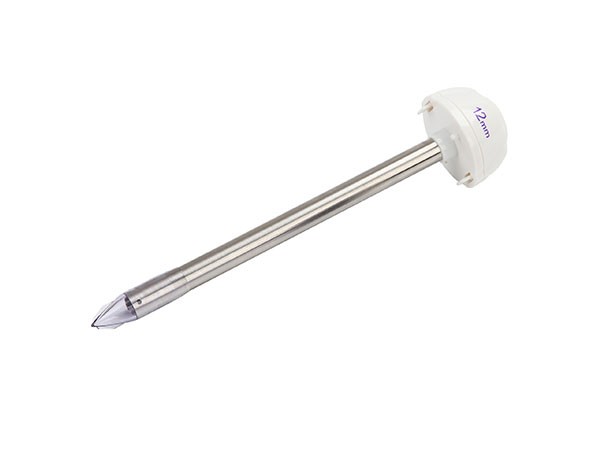

Trocar consists of sleeve and obturator. Obturator is mainly used to penetrate through the whole abdominal wall together with sleeve, and leave the sleeve on the abdominal wall. Sleeve is mainly used to facilitate various surgical devices to get into the abdominal cavity through it, so that surgeons could complete the surgery.
Uniquely designed fish-eye like valve to guarantee no gas leakage during whole procedure. Double valves integrated in removable cap to give visible and unblocked collection of tissue or needle.

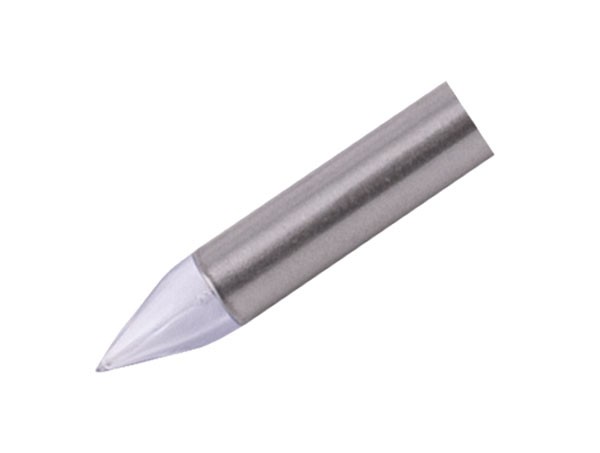

Bladeless

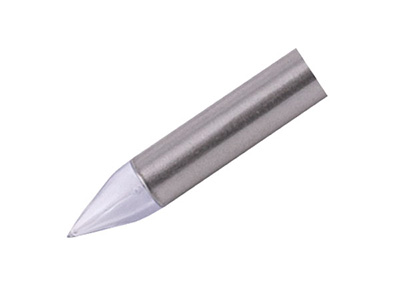

● Muscle separators without blade on both sides to make sure effective penetration and minimal damage in abdominal wall.
Hermeticity

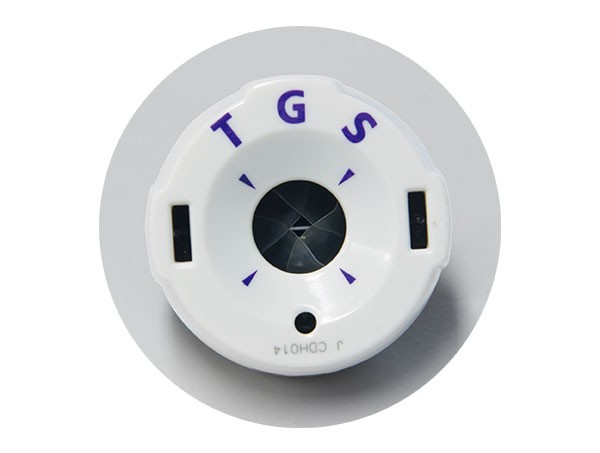

● Innovative fish-eye valve to replace traditional valve which moves together with endoscopic instruments to totally prevent gas leakage

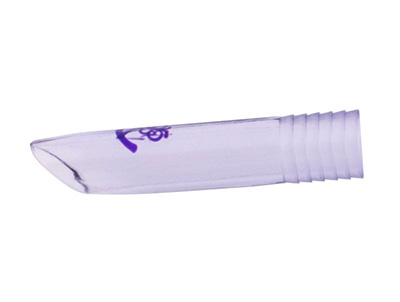

Transparency
● Transparent obturator tip and cannula to guarantee the best vision for procedures and collection of tissue or needle

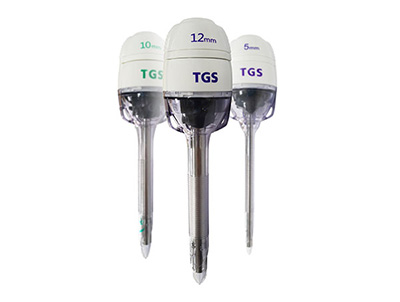

Code | Products Description | Trocar Sleeve Inner Dia. | Trocar Sleeve Length | Remark |
OATL5 | 5mm cannula x 1 + 5mm puncture core x 1 | 5.8mm | 100mm | |
OATL10 | 10mm cannula x 1 + 10mm puncture core x 1 | 10.8mm | 100mm | |
OATL12 | 12mm cannula x 1 + 12mm puncture core x 1 | 12.8mm | 100mm | |
K5LO | 5mm cannula x 2 + 5mm puncture core x 1 | 5.8mm | 100mm | |
K10LO | 10mm cannula x 2 + 10mm puncture core x 1 | 10.8mm | 100mm | |
K12LO | 12mm cannula x 2 + 12mm puncture core x 1 | 12.8mm | 100mm | |
K510LO | 5mm cannula x 2 + 10mm cannula x 2 + 5mm puncture core x 1 + 10mm puncture core x 1 | 5.8mm & 10.8mm | 100mm | |
K512LO | 5mm cannula x 2 + 12mm cannula x 2 + 5mm puncture core x 1 + 12mm puncture core x 1 | 5.8mm & 12.8mm | 100mm | |
TS5L | 5mm cannula x 1 | 5.8mm | 100mm | Customer Made |
TS10L | 10mm cannula x 1 | 10.8mm | 100mm | Customer Made |
TS12L | 12mm cannula x 1 | 12.8mm | 100mm | Customer Made |

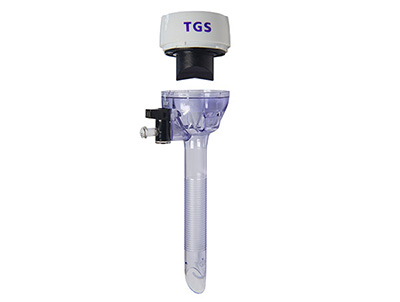

Removable Sealing Valves
